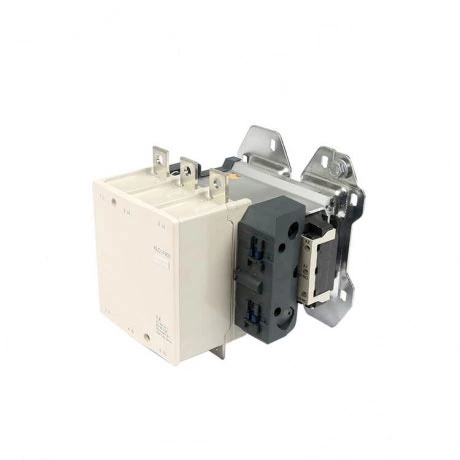

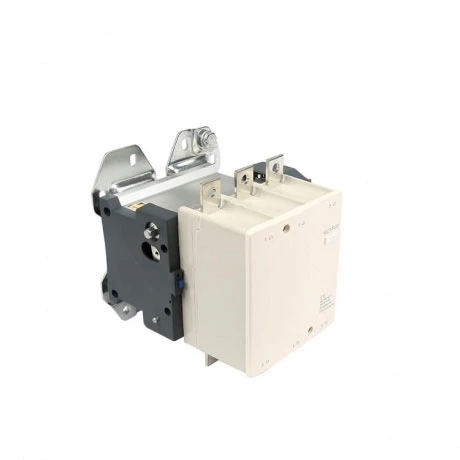

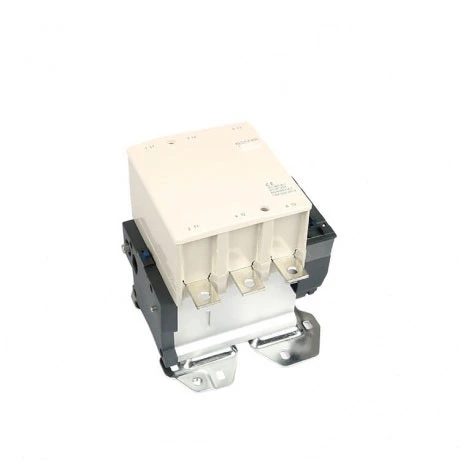

Name: LC1-F400 AC Contactor
Brand: Dreamfly
SKU: LC1-F400
Rating: 0 (1768 reviews)

LC1-F400 AC Contactor

1.1 Certificates: CE;
1.2 Electric ratings: AC50/60Hz, 690V, up to 1000A ;
1.3 Application: remote making & breaking circuits, protect circuit from over-load when assembling with thermal over-load relay, frequent start-up and control of AC motor; .
1.4 Utilization category: AC-3, AC-4;
1.5 Altitude:≤2000m;
1.6 Ambient temperature: -5℃~ +40℃;
1.7 Mounting category: Ⅲ;
1.8 Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed 士5° ;
1.9 Standard: IEC/EN 60947-4-1.

Items	Model		LC1-F115	LC1-F150	LC1-F185	LC1-F225	LC1-F265	LC1-F330
Pole			3/4	3/4	3/4	3/4	3/4	3/4
Rated conventional heating current (A) AC-1			200	200	275	280	350	360
Rated operational current (A)	380/400V	AC-3 AC-4	115	150	185	225	265	330
	380/400V	AC-3 AC-4	50	65	75	85	100	124
	660/690V	AC-3 AC-4	70	90	108	115	170	190
	660/690V	AC-3 AC-4	25	32	38	40	47	60
Rated insulation voltage (V AC)			690	690	690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	kW	380/415V AC	55	75	90	110	132	160
Power of controlled 3-phase cage motor (AC-3)	kW	660/690V AC	80	100	110	140	160	220
AC coil (V)			110,127,220,240,380,415,440,480,500,600

Items	Model		LC1-F400	LC1-F500	LC1-F630	LC1-F800	LC1-F780	LC1-F1000
Pole			3/4	3/4	3/4	3/4	3/4	3/4
Rated conventional heating current (A) AC-1			430	580	850	850	1200	1200
Rated operational current (A)	380/400V	AC-3 AC-4	400	500	630	800	780	1000
	380/400V	AC-3 AC-4	150	185	188	195	240	-
	660/690V	AC-3 AC-4	235	290	360	486	-	-
	660/690V	AC-3 AC-4	72	85	170	-	-	-
Rated insulation voltage (V AC)			690	690	690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	kW	380/415V AC	200	250	335	400	400	500
Power of controlled 3-phase cage motor (AC-3)	kW	660/690V AC	280	330	450	475	475	670
AC coil (V)			110,127,220,240,380,415,440,480,500,600
