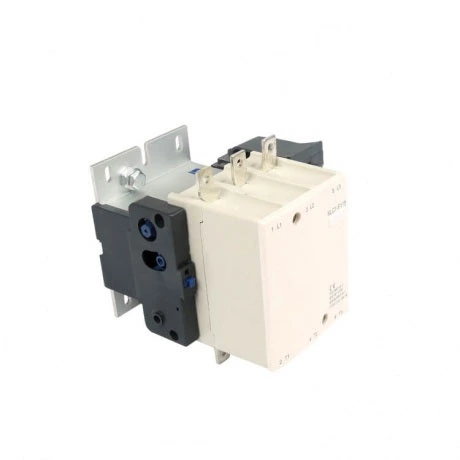

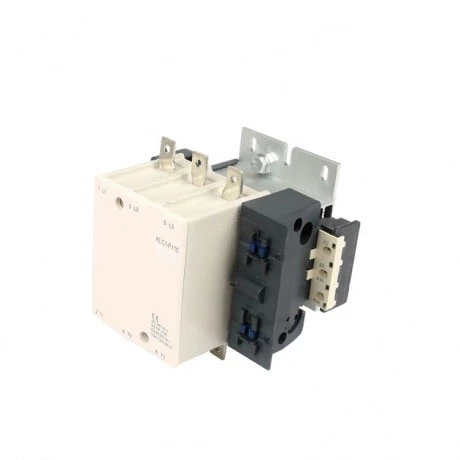

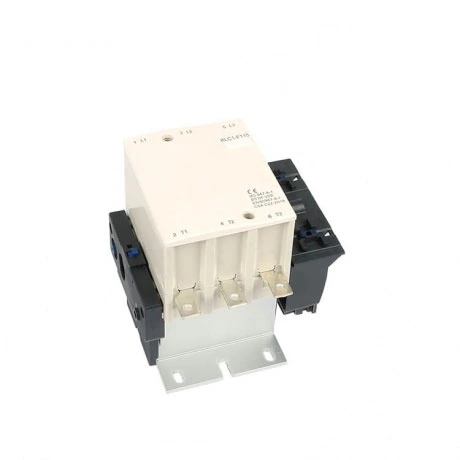

LC1-F115 AC Contactor
1. GENERAL
- 1.1 Certificates: CE;
- 1.2 Electric ratings: AC50/60Hz, 690V, up to 1000A ;
- 1.3 Application: remote making & breaking circuits, protect circuit from over-load when assembling with thermal over-load relay, frequent start-up and control of AC motor; .
- 1.4 Utilization category: AC-3, AC-4;
- 1.5 Altitude:≤2000m;
- 1.6 Ambient temperature: -5℃~ +40℃;
- 1.7 Mounting category: Ⅲ;
- 1.8 Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed 士5° ;
- 1.9 Standard: IEC/EN 60947-4-1.
2. TECHNICAL DATA
| Items | Model | LC1-F115 | LC1-F150 | LC1-F185 | LC1-F225 | LC1-F265 | LC1-F330 | |
| Pole | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | ||
| Rated conventional heating current (A) AC-1 | 200 | 200 | 275 | 280 | 350 | 360 | ||
| Rated operational current (A) | 380/400V | AC-3 AC-4 |
115 | 150 | 185 | 225 | 265 | 330 |
| 50 | 65 | 75 | 85 | 100 | 124 | |||
| 660/690V | AC-3 AC-4 |
70 | 90 | 108 | 115 | 170 | 190 | |
| 25 | 32 | 38 | 40 | 47 | 60 | |||
| Rated insulation voltage (V AC) | 690 | 690 | 690 | 690 | 690 | 690 | ||
| Power of controlled 3-phase cage motor (AC-3) | kW | 380/415V AC | 55 | 75 | 90 | 110 | 132 | 160 |
| 660/690V AC | 80 | 100 | 110 | 140 | 160 | 220 | ||
| AC coil (V) | 110,127,220,240,380,415,440,480,500,600 | |||||||
| Items | Model | LC1-F400 | LC1-F500 | LC1-F630 | LC1-F800 | LC1-F780 | LC1-F1000 | |
| Pole | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | ||
| Rated conventional heating current (A) AC-1 | 430 | 580 | 850 | 850 | 1200 | 1200 | ||
| Rated operational current (A) | 380/400V | AC-3 AC-4 |
400 | 500 | 630 | 800 | 780 | 1000 |
| 150 | 185 | 188 | 195 | 240 | - | |||
| 660/690V | AC-3 AC-4 |
235 | 290 | 360 | 486 | - | - | |
| 72 | 85 | 170 | - | - | - | |||
| Rated insulation voltage (V AC) | 690 | 690 | 690 | 690 | 690 | 690 | ||
| Power of controlled 3-phase cage motor (AC-3) | kW | 380/415V AC | 200 | 250 | 335 | 400 | 400 | 500 |
| 660/690V AC | 280 | 330 | 450 | 475 | 475 | 670 | ||
| AC coil (V) | 110,127,220,240,380,415,440,480,500,600 | |||||||
3. ACCESSORIES
